Manage Data Quality Rules

The Rules page allows Data Administrators to manage the library of Data Quality Rules used during the mapping process.

Data Quality Rules help check the quality of incoming source data before it is loaded into the CryspIQ® Enterprise Data Model. Rules can identify missing, invalid, inconsistent or poorly formatted data so issues can be reviewed and resolved early.

Rules are an important part of the CryspIQ® methodology because they help ensure data is trusted, governed and ready for reporting, analytics and AI.

Overview​

A Data Quality Rule is reusable validation logic that can be applied to source data during mapping.

Rules can be used to:

  • Check mandatory values
  • Validate formats
  • Validate allowed values
  • Check value ranges
  • Identify duplicates
  • Validate relationships
  • Detect incomplete data
  • Call external validation services
  • Align quality checks to data governance standards

Data Quality Dimensions​

CryspIQ® aligns Data Quality Rules to recognised data quality dimensions based on DAMA data management principles.

The seven common dimensions are:

DimensionWhat it checks
CompletenessIs required data present?
ValidityDoes the data follow the expected format or rule?
AccuracyDoes the data correctly represent the real-world value?
ConsistencyIs the data consistent across systems, fields or records?
UniquenessAre duplicate records or duplicate keys avoided?
TimelinessIs the data available and current when required?
IntegrityAre relationships between records valid and reliable?
tip

Aligning rules to dimensions helps Data Administrators and Data Stewards understand what type of data quality issue has been detected.

Rule Types​

CryspIQ® supports different types of Data Quality Rules.

Rule TypeDescription
Regex RuleUses a regular expression to validate text, formats or patterns.
Python ScriptExecutes Python logic for custom validation.
.NET FunctionExecutes reusable .NET validation logic.
API CallCalls an external API to validate or enrich data.

When Rules Are Used​

Data Quality Rules are applied during the mapping process.

Source Data
      ↓
Message Map
      ↓
Apply Defaults
      ↓
Apply Methods
      ↓
Apply Data Quality Rules
      ↓
CryspIQ® Enterprise Data Model

Rules help identify quality issues before data is consumed by users, reports or AI engines.

Examples​

Completeness Rule​

Checks whether a required value is missing.

CustomerId must not be blank

Validity Rule​

Checks whether a value follows the expected format.

EmailAddress must match email format

Example regex:

^[^@\s]+@[^@\s]+\.[^@\s]+$

Accuracy Rule​

Checks whether a value appears reasonable or correct.

InvoiceAmount must be greater than zero

Consistency Rule​

Checks whether values agree across fields.

EndDate must be greater than or equal to StartDate

Uniqueness Rule​

Checks whether a business key appears more than once.

CustomerId must be unique within the source message

Timeliness Rule​

Checks whether data is current enough to be useful.

ModifiedDate must be within the last 30 days

Integrity Rule​

Checks whether relationships between fields or records are valid.

ProductId must exist in the product reference data

Before You Start​

Before creating a rule, ensure:

  • You have Data Administrator access.
  • The Source Message has been created.
  • The Message Map exists or is being configured.
  • The expected data quality requirement is understood.
  • The rule can be aligned to a data quality dimension.
  • Any required external API or function is available.
info

Rules should be designed to identify data quality issues clearly so Data Stewards can understand and resolve them.

From the main menu navigate to:

Maps → Rules

The Rules page displays the Data Quality Rule library.

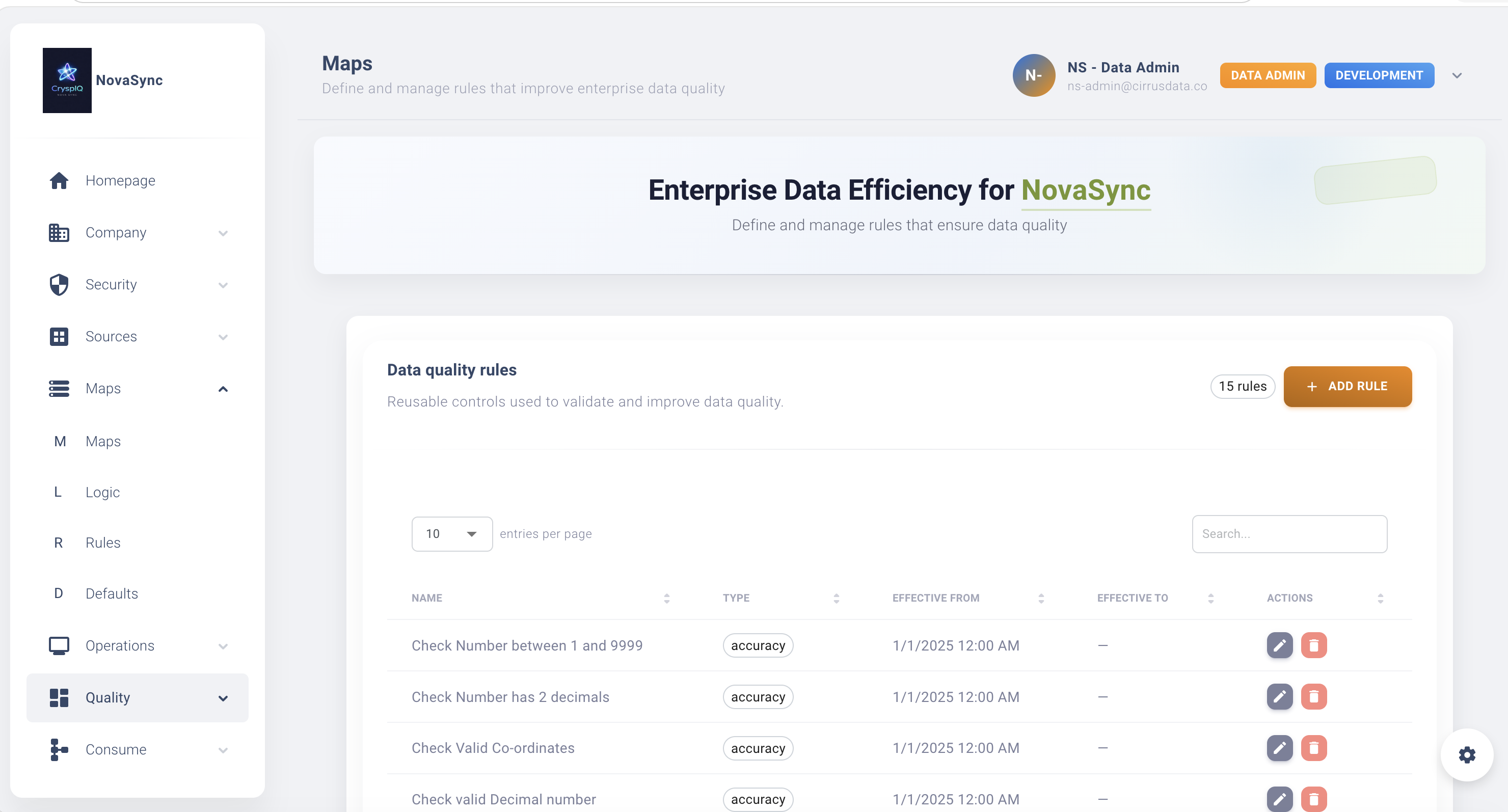

Rules Overview

Create a Rule​

To create a new Data Quality Rule:

  1. Open Maps → Rules.
  2. Select Add Rule.
  3. Enter a Rule Name.
  4. Select the Rule Type.
  5. Select the Data Quality Dimension.
  6. Enter a Description.
  7. Configure the validation logic.
  8. Save the rule.

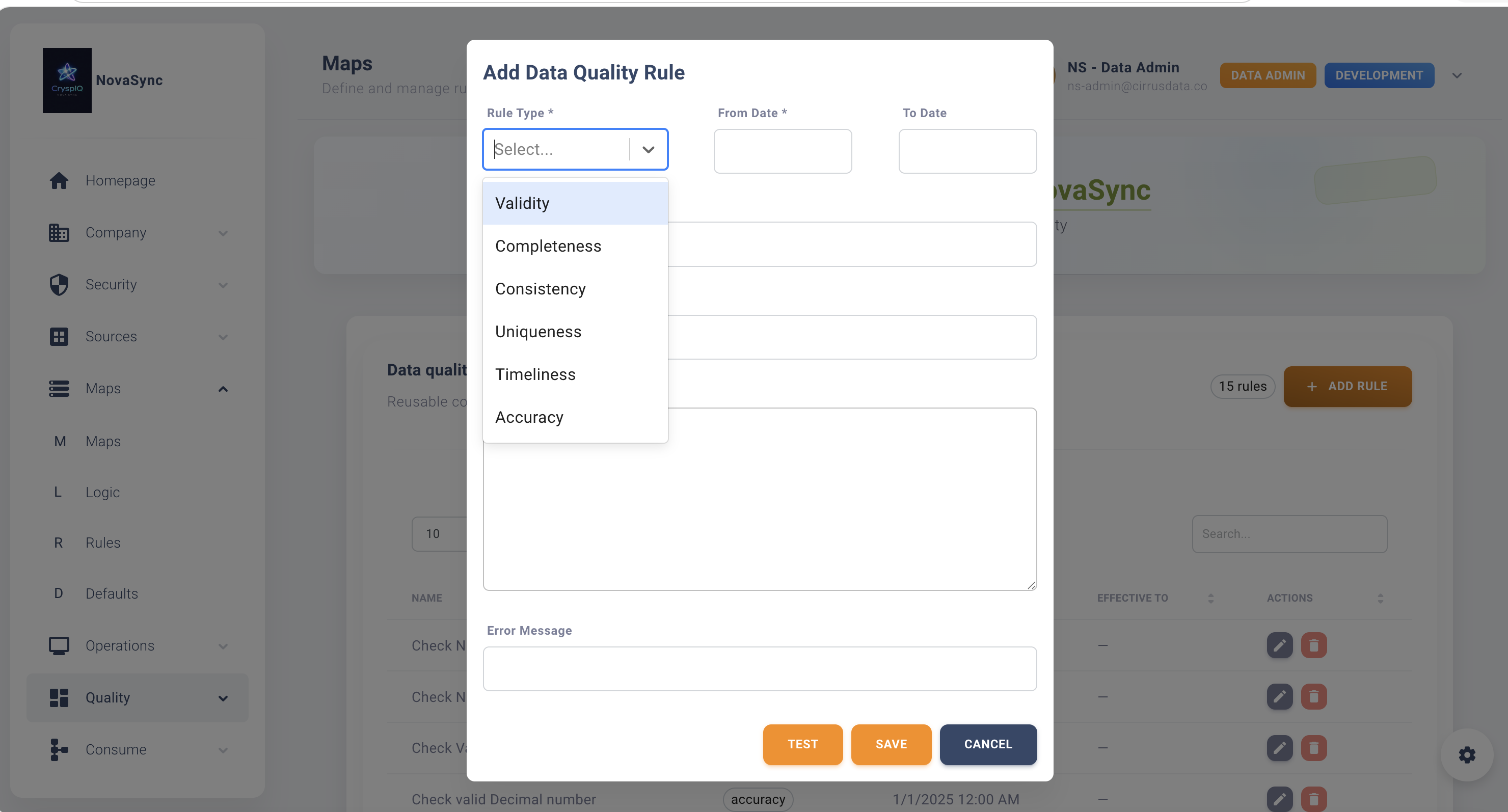

Create Rule

After saving, the rule becomes available for use in Message Maps.

Rule Name​

Use a clear name that explains what the rule checks.

Good examples:

Validate Email Format
Check Mandatory Customer ID
Validate Positive Invoice Amount
Check Start Date Before End Date
Validate ABN

Avoid:

Rule1
TestRule
NewValidation

Description​

Use the description to explain:

  • What the rule checks
  • Why the rule is required
  • Which data quality dimension it supports
  • What happens when the rule fails

Example:

Validates that Email Address follows a valid email format. This supports the Validity data quality dimension.

Configure Rule Logic​

The configuration depends on the rule type.

Regex Rule​

Use regex rules for pattern and format validation.

Examples include:

  • Email format
  • Phone number format
  • Postcode format
  • Alphanumeric codes
  • Date patterns
  • Identifier formats

Example:

^[A-Z0-9_-]+$

This may be used to validate a code that allows uppercase letters, numbers, underscores and dashes.

Python Script​

Use Python scripts for custom validation logic.

Examples include:

  • Complex field comparisons
  • Conditional checks
  • Value range checks
  • Derived validation
  • Multi-field rules

.NET Function​

Use .NET functions for reusable enterprise validation logic.

Examples include:

  • Standard business validations
  • Enterprise reference checks
  • Shared calculation rules
  • High-performance validation routines

API Call​

Use API calls when validation must be performed by an external service.

Examples include:

  • Address validation
  • ABN or company number validation
  • Credit checks
  • Reference data validation
  • Geocoding validation

Apply a Rule to a Message Map​

Once a rule has been created, it can be assigned to a field within a Message Map.

Example:

Source FieldTarget FieldRuleDimension
EmailAddressEmailValidate Email FormatValidity
CustomerIdEntity Business KeyCheck Mandatory Customer IDCompleteness
InvoiceAmountFact ValueValidate Positive AmountAccuracy
InvoiceNumberFact Business KeyCheck Unique Invoice NumberUniqueness

Open the Create Message Maps guide

View Existing Rules​

To review a rule:

  1. Open Maps → Rules.
  2. Locate the rule.
  3. Open the rule details.

Use this when:

  • Reviewing data quality logic
  • Investigating failed records
  • Understanding why data was flagged
  • Checking rule ownership and purpose
  • Reviewing rule alignment to DAMA dimensions

Edit a Rule​

To update a rule:

  1. Open Maps → Rules.
  2. Locate the rule.
  3. Select Edit.
  4. Update the required details.
  5. Save the changes.

Common updates include:

  • Updating regex logic
  • Updating Python script logic
  • Updating API endpoint details
  • Updating descriptions
  • Changing the associated data quality dimension
  • Aligning with new business rules
warning

Changing a rule may affect future data quality outcomes wherever the rule is used.

Review all related Message Maps before making significant changes.

Delete a Rule​

To delete a rule:

  1. Open Maps → Rules.
  2. Locate the rule.
  3. Select Delete.

CryspIQ® prevents deletion if the rule is currently being used.

In-Use Validation​

Rules assigned to active Message Maps cannot be deleted.

Example:

Delete Failed

Rule is currently being used by one or more Message Maps.

The rule must first be removed from all active mappings before it can be deleted.

This protects existing processing configurations from being broken accidentally.

Finding Where a Rule Is Used​

Before deleting or changing a rule, review:

  • Message Maps
  • Target fields
  • Source fields
  • Data quality dashboards
  • Processing dependencies

This helps Data Administrators understand the impact of a change.

Best Practices​

Align Every Rule to a Dimension​

Each rule should be linked to a data quality dimension.

This makes quality reporting easier and helps Data Stewards understand the type of issue detected.

Make Rules Reusable​

Design rules that can be reused across multiple Source Messages and Message Maps.

For example:

Validate Email Format

is better than:

Validate Email Format for Customer File Only

unless the rule is genuinely specific.

Keep Rules Focused​

Each rule should check one clear condition.

This makes failures easier to explain and resolve.

Use Clear Failure Messages​

A good failure message helps Data Stewards understand what needs to be fixed.

Example:

Email Address is not in a valid format.

Test Before Production Use​

Test rules before applying them to production mappings.

This is especially important for:

  • Python scripts
  • API calls
  • .NET functions
  • Complex regex logic

Troubleshooting​

Rule Not Applied​

Check:

  • The rule has been assigned to the Message Map.
  • The correct source and target fields are mapped.
  • The map is active.
  • Processing completed successfully.

Rule Flags Too Many Records​

Review:

  • Rule logic
  • Regex pattern
  • Input data values
  • Data type assumptions
  • Business rule interpretation

Rule Does Not Flag Expected Issues​

Check:

  • Rule assignment
  • Input values
  • Case sensitivity
  • Null handling
  • Rule execution order

Cannot Delete Rule​

Check whether the rule is assigned to a Message Map.

Remove dependencies before attempting deletion.

API Rule Fails​

Check:

  • API endpoint availability
  • Authentication details
  • Network access
  • Request format
  • Response format
  • API timeout behaviour

Relationship to Defaults and Methods​

Rules work alongside other mapping components.

ComponentPurpose
DefaultsSupply missing values
MethodsPrepare and enrich data
Data Quality RulesValidate incoming data
Message MapsApply business context

Together these components help turn raw source data into trusted, standardised and quality-controlled enterprise data.

Next Steps​

After creating a Data Quality Rule:

  1. Apply the rule to a Message Map.
  2. Test the mapping process.
  3. Review any flagged data quality issues.
  4. Check Mapper and Load Operations.
  5. Review Data Quality dashboards.
  6. Confirm Data Stewards understand the rule and failure message.

Data Quality Rules help ensure source data is checked, governed and trusted before it becomes part of the CryspIQ® Enterprise Data Model.
